Gallery Four: Designs and preparation for the forthcoming OSF study.

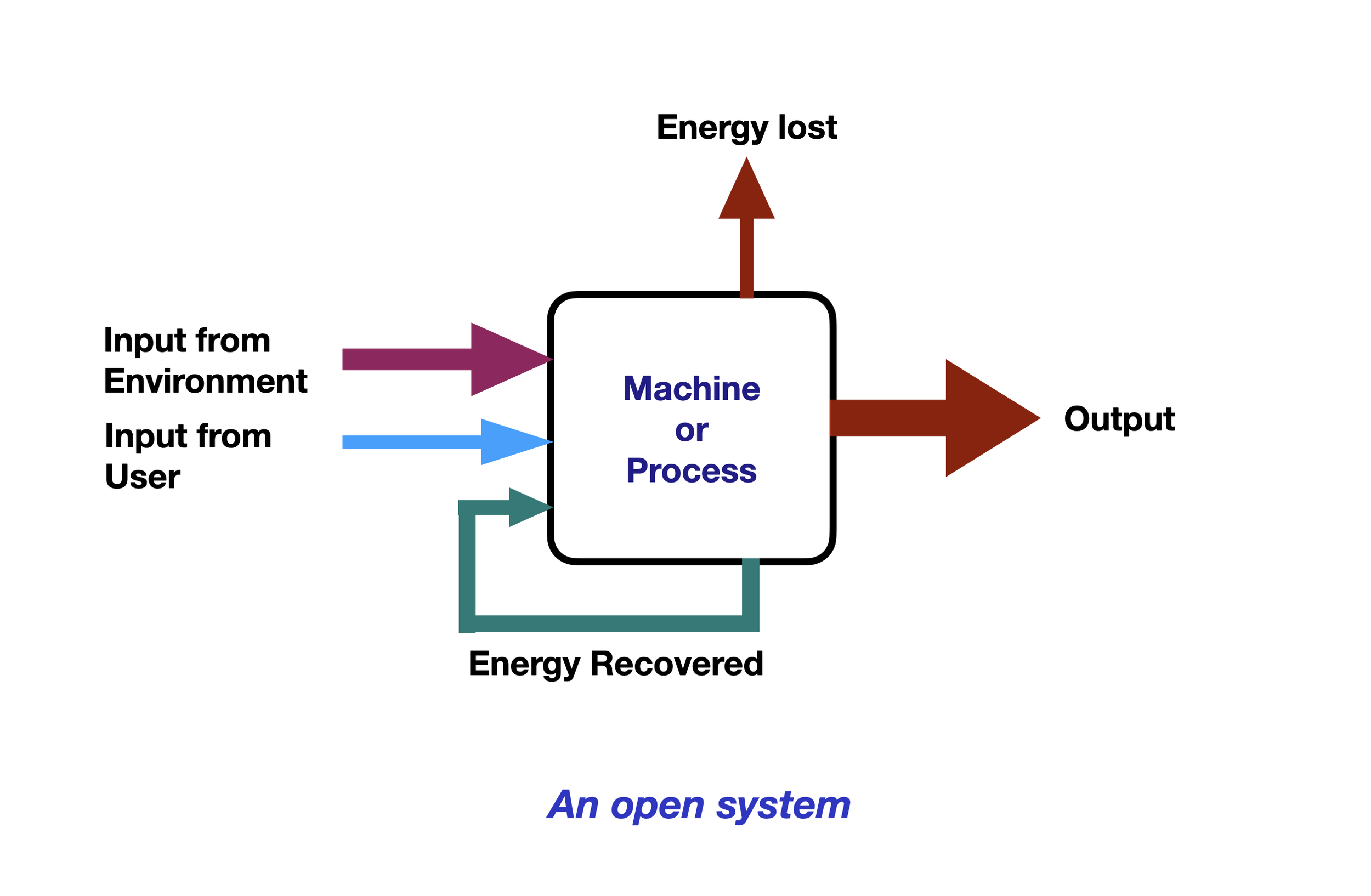

Open System Flow.png

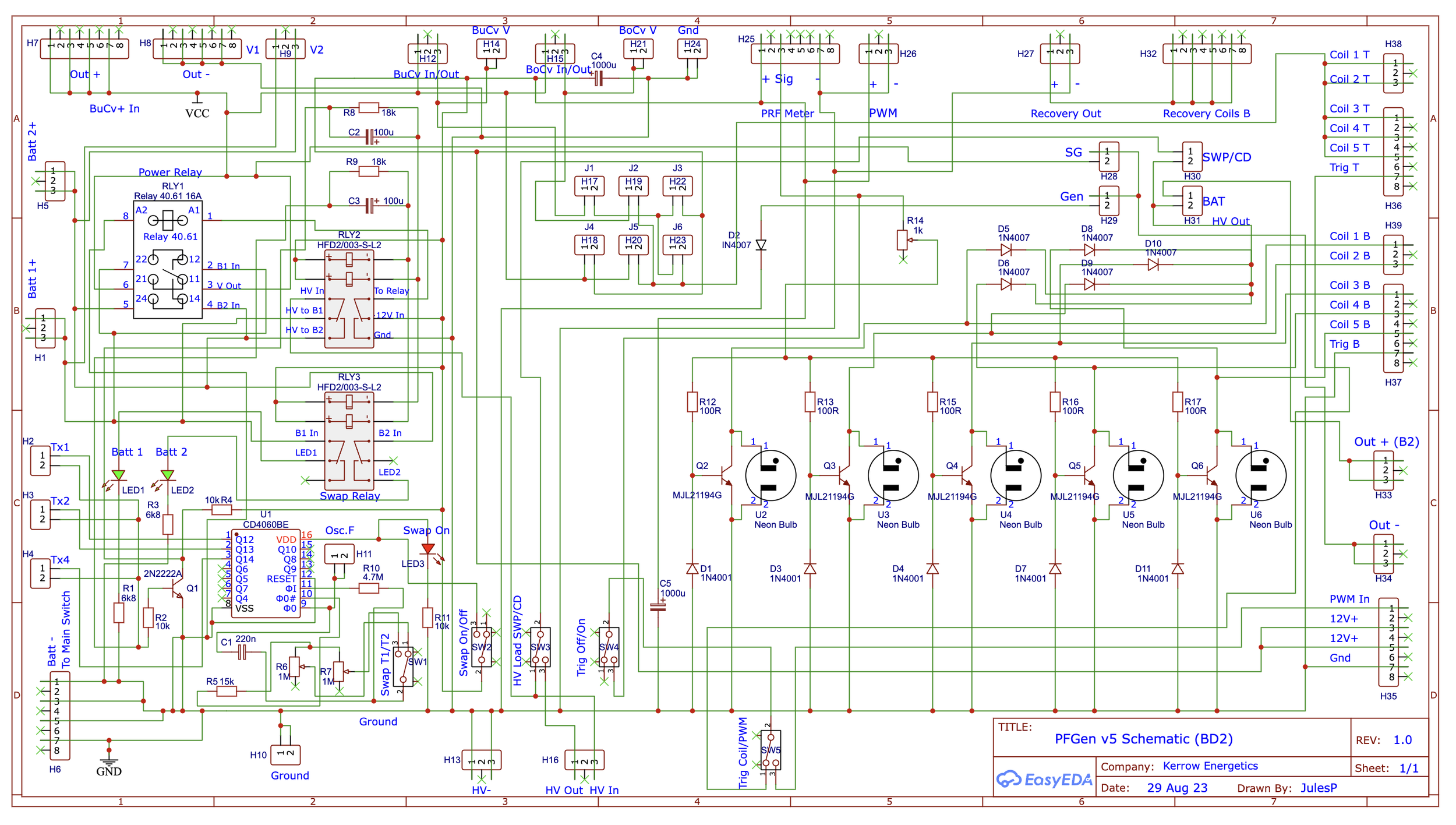

PFGen Schematic v5 (BD2).png

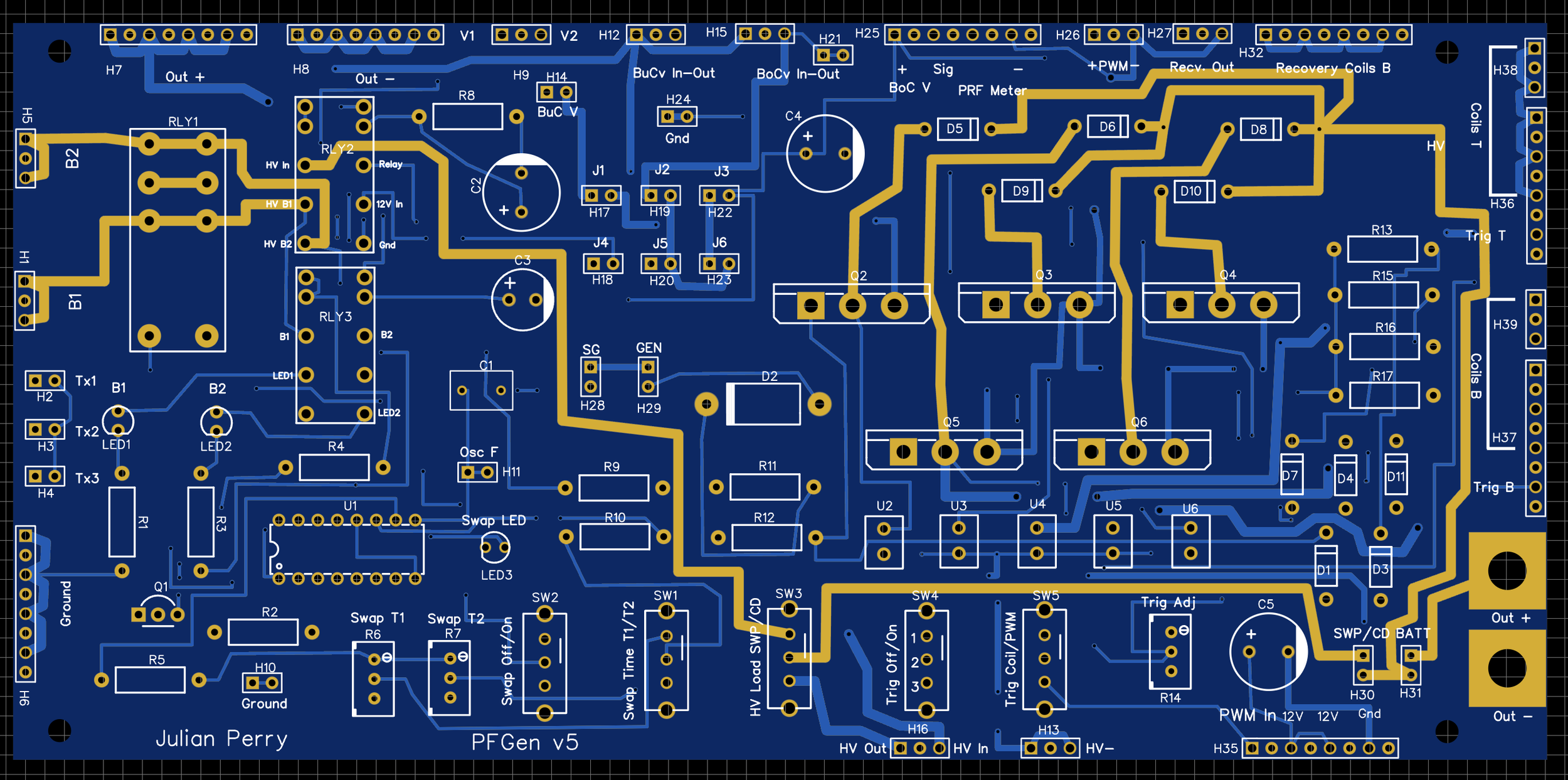

PFGen v5 PCB2.png

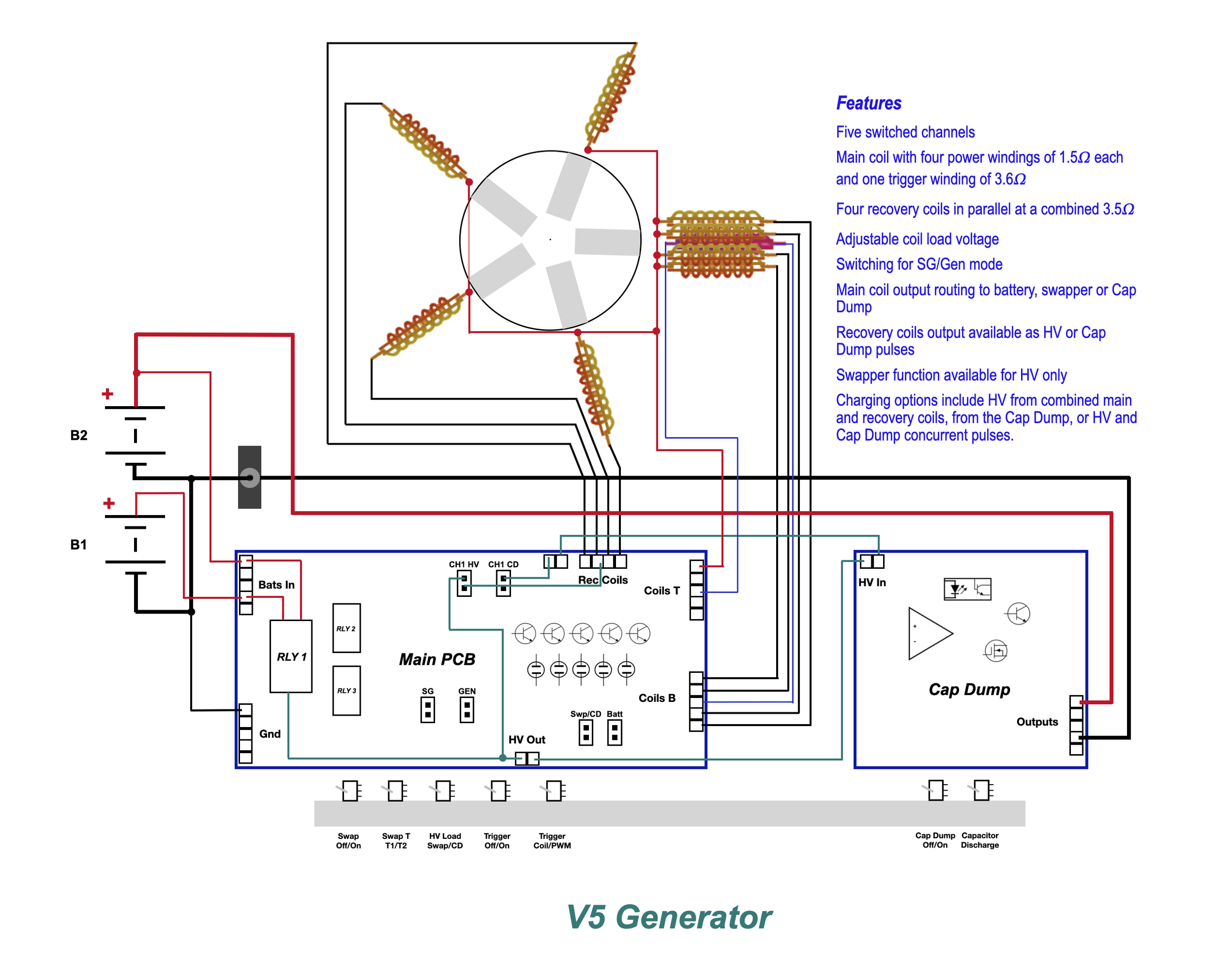

V5 Generator Layout.png
